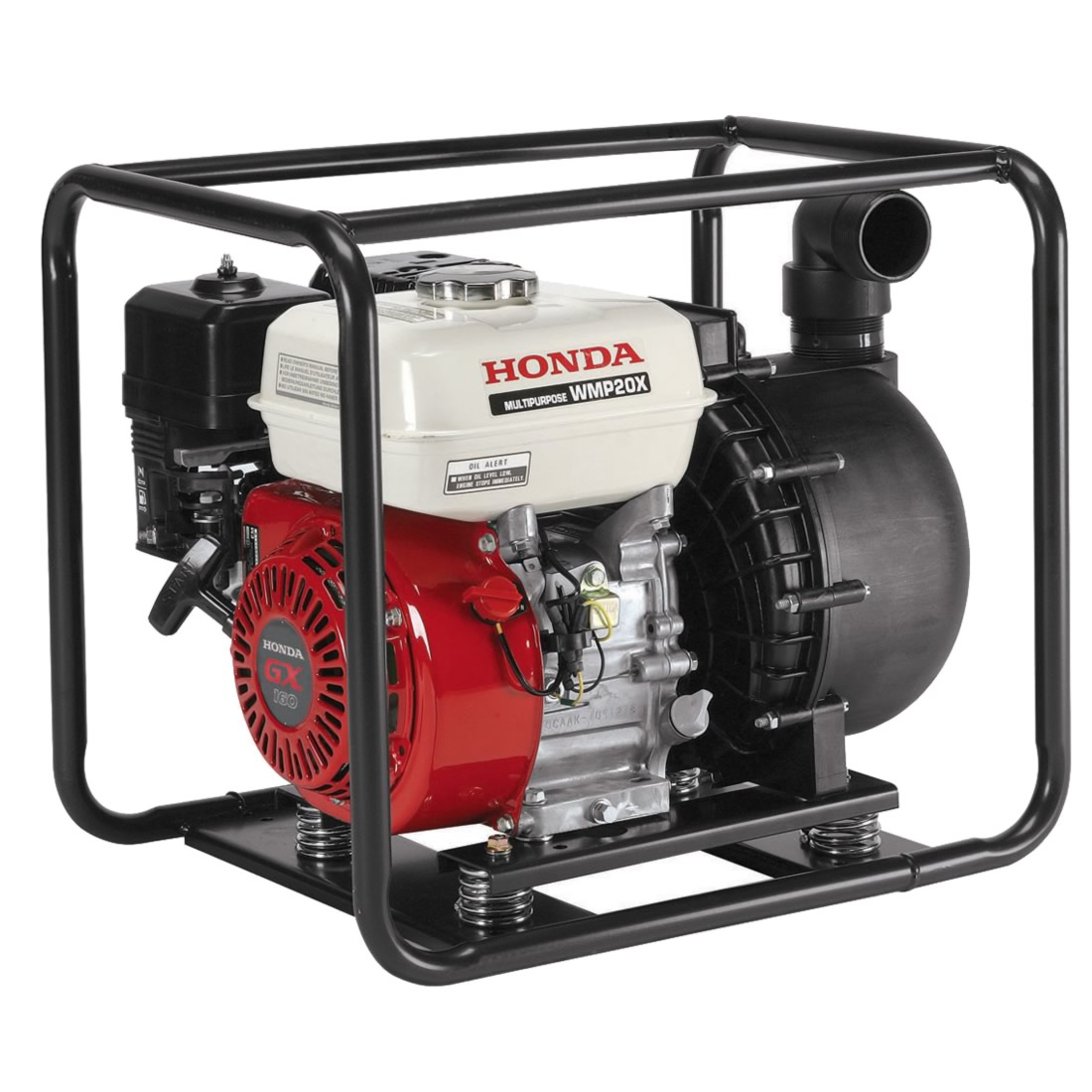

New WMP20

Pumps
WMP20
REQUEST A QUOTE
  • Multi-purpose 2" pump
  • Designed for pumping industrial and agricultural chemicals
  • Easy starting Honda OHV commercial engine
  • 220 gal./min capacity
  • Thermoplastic pump housing for chemical capability
Key Features
Engine GX160
Displacement 163cc
Bore and stroke 2.7" x 1.8"
Compression Ratio 9.0:1
Oil Alert Std
Pump type Multi-purpose Centrifugal Self-priming
Volute Rigid Mounted Fiberglass reinforced polyester
Impeller Fiberglass reinforced polyester
Mechanical Seal (Pump case / impeller) Carbon/Ceramic
Priming time 65 sec. @ 16.4 ft.
Drive system Direct
Discharge capacity 220 gals./min.
Suction port diameter 2" NPT
Discharge port diameter 2" NPT
Total head lift 102 ft.
Suction head lift 26 ft.
Maximum pressure 44 psi
Solids handling N/A
Dimensions (LxWxH) 20.5" x 15.7" x 17.7"
Dry weight 57 lb.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YE0-003
Residential Warranty 3 years
Commercial Warranty 3 years
