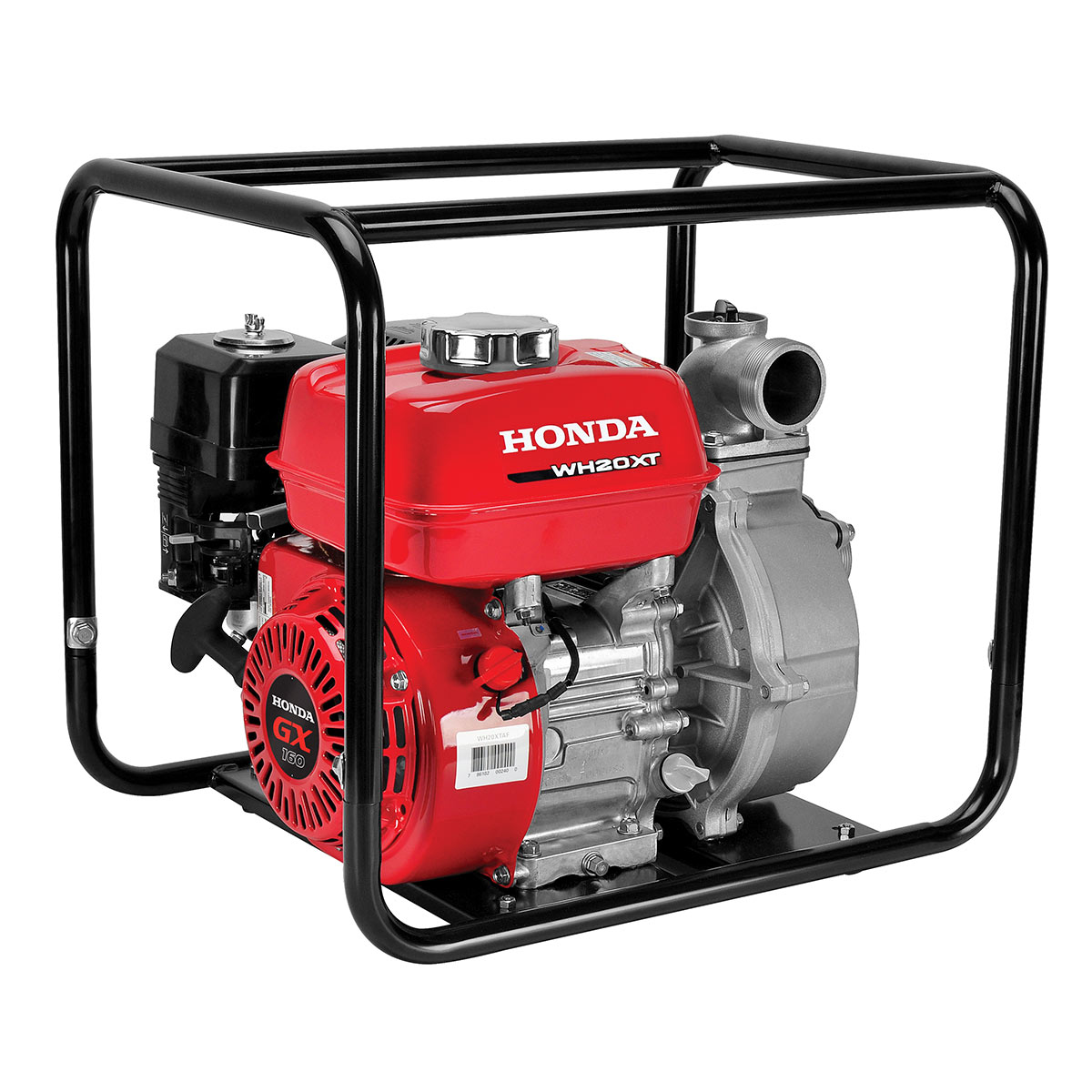

New WH20

Pumps
REQUEST A QUOTE
REQUEST A QUOTE
  • High pressure 2" pump
  • Easy starting Honda OHV commercial engine
  • 134 gal./min capacity
  • 61 psi max.
  • Cast iron volute and impeller
Key Features
Engine GX160
Displacement 163cc
Bore and stroke 2.7" x 1.8"
Compression Ratio 9.0:1
Oil Alert N/A
Pump type High Pressure, Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller Cast Iron
Mechanical Seal (Pump case / impeller) Carbon/Ceramic
Priming time 80 sec. at 16.4 ft.
Drive system Direct
Discharge capacity 119 gals./min.
Suction port diameter 2" NPT
Discharge port diameter 2" NPT
Total head lift 148 ft.
Suction head lift 26 ft.
Maximum pressure 64 psi
Solids handling N/A
Dimensions (LxWxH) 20.5" x 15.7" x 18.1"
Dry weight 60 lb.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YB7-702
Residential Warranty 3 years
Commercial Warranty 3 years
